Metal Print Specifications

Print Size

Width

Height

Metal Mount:

No Mount

Box Mount

Box Mount

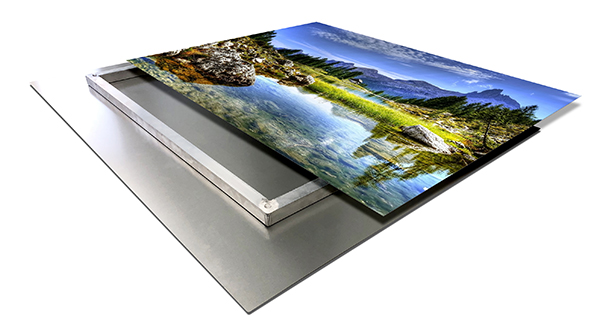

The box mount is an excellent option for prints smaller than 20" x 30". It made entirely of aluminum so it goes perfect with our aluminum prints. The box mount floats your prints 3/4" off the wall and requires only a single nail for hanging. The box mount is the easiest and most practical way to hang your metal prints.

Frame Mount

Frame Mount
Similar to the Frame Mount, the frame mount is a small upgrade from the frame mount and sits your print 3/4" off the wall. This option gives a slightly better appearance if the back of your print is important for displaying to potential customers. Frame mounts include all hanging hardware including cleat, screws and level to ensure proper hanging.

Tuxedo Mount

Tuxedo Mount
The Tuxedo Mount is for those who want to approve on the side appearance of their metal prints. The 1/4" thick black polystyrene backing gives an added weight to your print to give the impression of higher quality and offers a better feel when handling and displaying. This is a great option for display and show pieces that get transported frequently as it offers added protection for the edges. Comes standard with a black 3/4" thick frame for a truly clean black on black look and feel. This option looks great with our signature backstamp option.

Specifications

Weight (oz):

N/A

Weight (lbs):

N/A

Metal Print Specifications

Aluminum Thickness: 0.045” (approximately 3/64”) or 1 mm
Type of Aluminum: ChromaLuxe
Description: ChromaLuxe primarily uses aluminum sheets as the substrate for its panels. These aluminum panels are treated with a special coating to receive dye sublimation inks, which creates the high-definition, durable surface.
Print Process: Dye Sublimation - ChromaLuxe uses dye-sublimation printing technology. This involves transferring images into the coating of the panel using heat and pressure, ensuring that the image becomes part of the surface and is not just printed on top.

Metal Print Durability

Indoor Longevity: ChromaLuxe panels have been tested to last for 65+ years indoors without significant fading, assuming normal indoor lighting conditions and protection from direct sunlight.
Outdoor Longevity: For outdoor use, ChromaLuxe offers specific panels designed to withstand harsh environmental conditions. These outdoor panels can last for up to 5 years or more, depending on the level of direct exposure to sunlight and weather conditions. We are one of the only print labs utilizing a specially formulated ink that can extend the longevity of ChromaLuxe prints by up to 10 years.
Scratch-Resistant: The hard coating makes ChromaLuxe panels scratch-resistant, more durable than traditional photographic prints or other display mediums.
UV-Resistant: The coating provides resistance to UV rays, helping prevent fading over time, making them suitable for both indoor and outdoor use.
Moisture-Resistant: ChromaLuxe panels are moisture-resistant, which allows them to be used in more humid environments or places like kitchens and bathrooms.
Fire-Rated: Some panels are fire-rated, adhering to specific fire safety standards.
Temperature Range: Metal prints are highly resilient to both heat and cold, making them suitable for indoor and outdoor environments. While there is no specific upper or lower limit universally provided by manufacturers, here’s a general guideline for metal prints:
- High temperatures: Metal prints can handle temperatures up to 150°F to 200°F (65°C to 93°C) in everyday settings without warping or degrading.
- Low temperatures: Metal prints are resistant to cold conditions and can endure freezing temperatures down to -40°F (-40°C) without cracking or significant wear.

Mounting Options for Metal Prints

Box Mount

Thickness: 0.75” (3/4”) thick
Material: Aluminum
Color: Silver
Hanging Mechanism: Single hole in the back for hanging on a nail or screw
Rubber Bumpers: 4 bumpers, each 0.14” thick by 0.5” (1/2”) in diameter
Adhesive: Construction-grade adhesive used to attach the box mount to the print
Design: Box mounts are inset and smaller than the print to give a floating effect. Mount sizes vary depending on the print size:
- For prints sized 8”x8” to 11”x15”, the mount size is 4.5”x6”.
- For prints sized 12”x16” to 17”x17”, the mount size is 8.5”x12”.
- For prints sized 18”x18” to 19”x29”, the mount size is 8.5”x16”.
- For prints sized 20”x30”, the mount size is 8.5”x24”.

Frame Mount

Thickness: 0.75” (3/4”) thick
Back of Extrusion Width: 1.25” (1 1/4”) wide
Material: Aluminum
Color: Silver
Mounting Hardware: Includes an aluminum cleat with pre-drilled holes, drywall anchor screws, and a level
Rubber Bumpers: 4 bumpers, each 0.14” thick by 0.5” (1/2”) in diameter
Design: The frame mount is inset 2” (2 inches) around the print, creating a floating look with a modern and sleek profile.

Edge Mount

Thickness: 1.25” (1 1/4”) thick
Back of Extrusion Width: 1.5” (1 1/2”) wide
Material: Aluminum
Color: Available in silver and black
Mounting Hardware: Includes an aluminum cleat with pre-drilled holes, drywall anchor screws, and a level
Rubber Bumpers: 4 bumpers, each 0.14” thick by 0.5” (1/2”) in diameter
Design: Edge mounts are flush with the metal print, providing a clean and minimalistic frame. The edge mount adds a sleek finish that does not protrude beyond the print itself and will not allow you to see behind the print.

Tuxedo Mount

Sintra Board:: 0.25” (1/4”) thick black Sintra board attached to the back of the metal print
Frame Mount:: 0.75” (3/4”) thick
Back of Extrusion Width: 1.25” (1 1/4”) wide
Material: Aluminum
Color: Black
Mounting Hardware: Includes an aluminum cleat with pre-drilled holes, drywall anchor screws, and a level
Rubber Bumpers: 4 bumpers, each 0.14” thick by 0.5” (1/2”) in diameter
Total Thickness: 1.5” (1 1/2”) total thickness off the wall
Design: A combination of the black Sintra board and the black frame mount provides a professional, polished appearance. The tuxedo mount adds depth, contrast, and thickness to your metal print, perfect for a striking presentation.

What is Sintra Board?

Sintra Board is a lightweight yet rigid material made from PVC (Polyvinyl Chloride), known for its durability and smooth surface. It is resistant to moisture and chemicals, making it ideal for both indoor and outdoor applications. With its matte finish and ability to be easily cut, shaped, or printed on, Sintra Board is commonly used in signage, displays, and as backing material for high-quality prints.

Floater Frame

Thickness: 1.75” (1 3/4”) thick
Back of Extrusion Width: 0.25” (1/4”) wide
Gap Between Profile and Print Edge: 0.25” (1/4”) gap between the frame and print
Back of Extrusion Width: 2” (2 inches) wide
Material: Aluminum
Color: Available in silver and black
Mounting Hardware: Includes an aluminum cleat with pre-drilled holes, drywall anchor screws, and a level
Rubber Bumpers: 4 bumpers, each 0.14” thick by 0.5” (1/2”) in diameter
Design: The floater frame creates a subtle, elegant gap between the frame and the print, making it appear as though the print is floating within the frame. Ideal for a modern, gallery-like display.

Corner Options for Metal Prints

Rounded Corners: Metal prints with Frame Mount or Box Mount automatically come with 0.125” (1/8”) rounded corners. This feature prevents the sharp edges from cutting or scratching while giving the print a smoother appearance.

Square Corners: Metal prints with Edge Mounts, Tuxedo Mounts, and Floater Frames have square corners to match the corner shape of the mount. The precise alignment of the print and mount enhances the clean and sharp look of these mounting options.

Stand Off Mounts

Size: 0.75” x 1”

Color: Silver
Product Name: 3/4” x 1 3/16” Sign Standoffs
Material: Stainless Steel
Hole Diameter: 0.2” (5mm)
Thread Diameter: 0.4” (9.5mm)
Package Content: 20 x Glass Standoffs

Size: 1” x 1”

Diameter: 1 inch (1.0”)
Base Length: 3/4 inch (0.75”)
Cap Height: 1/5 inch (0.2”)
Accessories: Comes with double spacers, plastic expansion tube, and nail hardware
Material: Thickened body, stainless steel; wear-resistant and anti-scratch, with strong load-bearing capacity. Lightweight and durable. Adjustable screw cap for convenience and practicality.
